Durable Anti-Rust galvanized coil nails

Short Description:

The galvanized nails are composed of a number of single nails and connectors arranged in a set of different shapes. The connector can be copper -plated iron wire. The connector is connected to the β angle of the center line of each nail pole. Line connected together and roll into a volume. There are many procedures in the production of rolling nails. Some craftsmanship will consume more time. To shorten the time from the process steps, it can greatly improve the production efficiency of rolling nails.


Product Detail

Product Tags

The specific steps of the production process of rolling nails are as follows

S1: Material preparation, select Q235 steel bars as raw materials, and store in a dry rust and corrosion area for storage after the selection of materials.

S2: The material removing the rust, the polishing machine is polished to polish the surface of the material, and the rust of the material is removed.

S3: Nailing
1. Brushing, drawing the reinforced material after rust removal in the drawing machine, drawing the diameter of the nail as needed to choose the diameter, pulling the reinforcement into the diameter of the nail.
2. Stamping the reinforced material after brushed the brushed reinforcement materials in the cold equipment, and the punch of the nail tip to complete the nails to complete the production.
3. Polishing, adding the nails to the polishing machine for polishing, the speed of the polishing machine is 150-180 rpm/minutes, and the polishing time is controlled at 30-40 minutes.

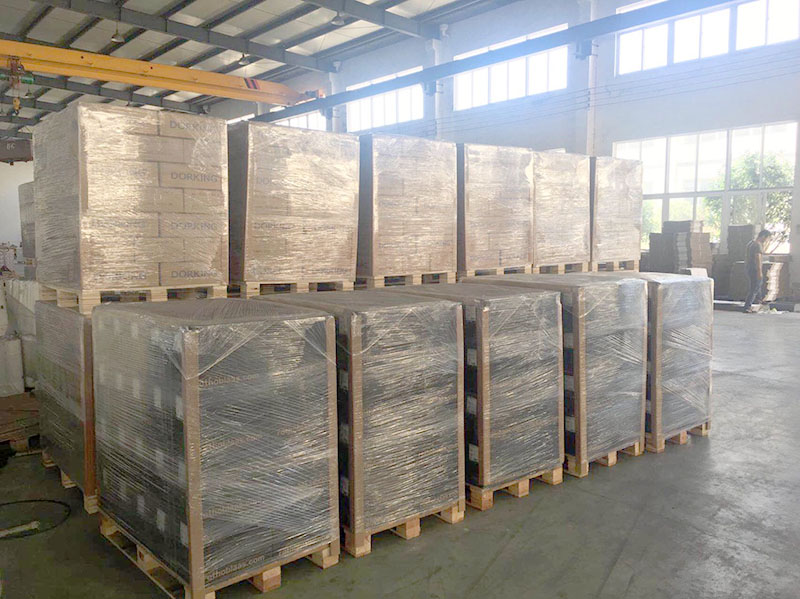

packaged and loading container

Angle: 15 degree flat or 16 degree conical, 11 degree, 0 degree.
Diameter: 0.083" 0.092" 0.099" 0.113" 0.120" 0.131" 0.148"
Length: 25mm-130mm.
Shanks: smooth, ring, screw.
Point: diamond, chisel, blunt.
Finish: bright, E.Galv. M.Galv. H.D Galv. 304 316 stainless steel.
We also can customize according to client’s requirements if they need.
