USGT 6-12 NC Steel Bar Straightening Cutting Machine
1. Straightening and cutting steel bar dia: ￠5-￠12mm
2. Cutting length: 0.3m-99m3. speed: 50m/min
3. Output (each 8hours): ￠6(4-5tons); ￠8(6-8tons); ￠10(8-10tons）
4. Input batches simultaneously: 1-20batches
5. Single batch cut pieces: 1-9999. Length tolerance: ±5mm
6. Power: 50HZ
7. Motor power: 9KW
8. CNC box power: ≤11w
9. Weight: 700Kg
10. Volume: 2000×700×1300
Main used to cut round bar straightening and cutting, usage as below:
For cold rolled ribbed steel bars for construction, hot rolled steel, cold rolled smooth surface round bar, hot rolled rebar, round bar, etc. (to change the straighten barrel use 8wheel)
|
Straightening wire dia |
Φ5-φ12 |
|
Automatic cut off |
0.3-9m (can be lengthened) |
|
Cut off length tolerance |
±5mm |
|
Straightening speed |
50m/min |
|
Straightening barrel motor power |
9KW |
|
Hydraulic cut off motor power |
4KW |
|
Dimensions |
1900×650×1400mm |
|
weight |
700KG |
Main machine
Traction CNC meter device
Control panel

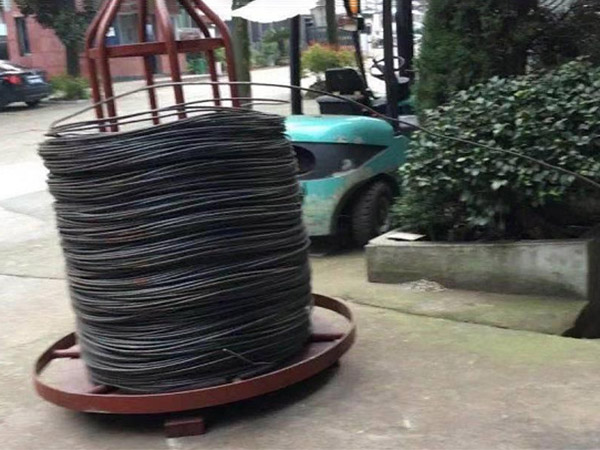

2.5tons finished wire device
If you require the tolerance must be: ±3mm or ±4mm,we need to use servo motor
The parameter as below:
Straightening motor power: 7.5kw
Servo motor: 2kw
Hydraulic power: 4kw
And the control box is touch screen.
The application of the round steel cutting machine in the construction industry market is mainly applied to the cutting of the steel bar, which is to cut the steel bar into the size to be used in the building. The round steel cutting machine is more convenient to carry when it is used, and the working efficiency of the round steel cutting machine is relatively high, which can meet the requirements of different round steel sizes in the construction industry market.
